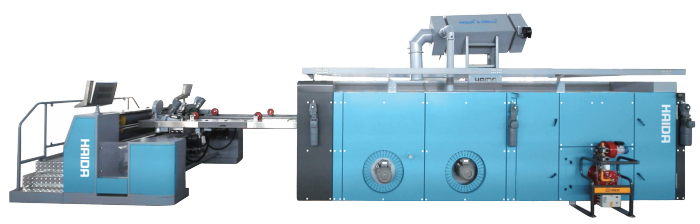

HDMA19 series stenter

● The machine’s exterior design and operating console are designed for human ergonomics and is available in industrial trend colors.
● It is mostly suitable for brushed and pile fabric.
● The maintenance condition of fabric transport chain checked by remote control.
● Combined heating modes can be used together in one stenter (for example:steam heating+gas heating,.steam heating+electric heating).
● Haishan HDMA19 series stenter has 10%-15% energy saving than Similar Products in the market.
● Haishan Remote operation checks operating data of the equipment at any time with computer or mobile phone.Manage energy consumption and improve energy efficiency,statistics of energy consumption in a given period and trace quality problems, upgrade technical level and output efficiency.

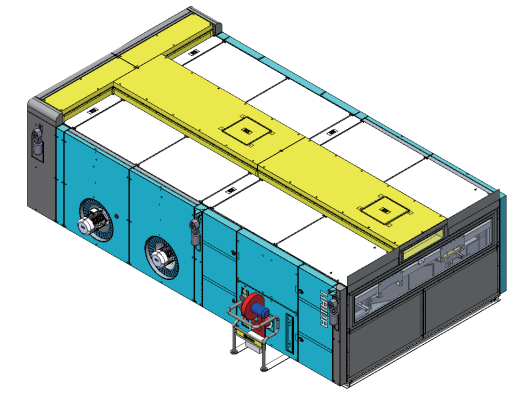

Integrated exhaust duct located at the middle of the roof, which is suitable for polyester fabric process due to its large exhaust quantity.

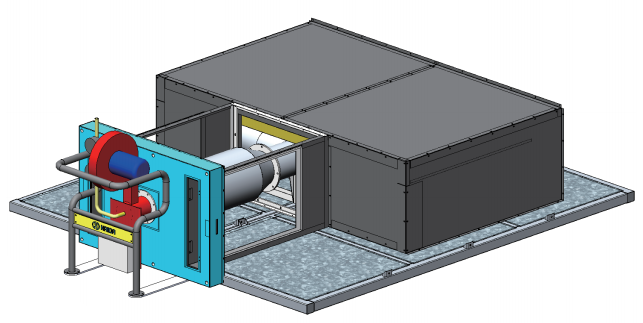

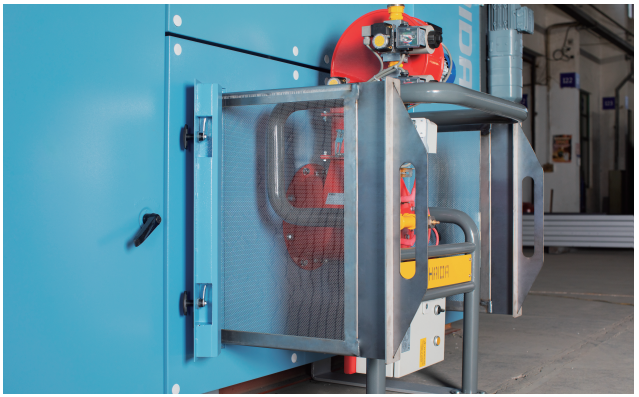

The direct combustion and indirect heating system of the first vertical burner in China is more suitable for fabrics and processes with high color and fiber temperature sensitivity

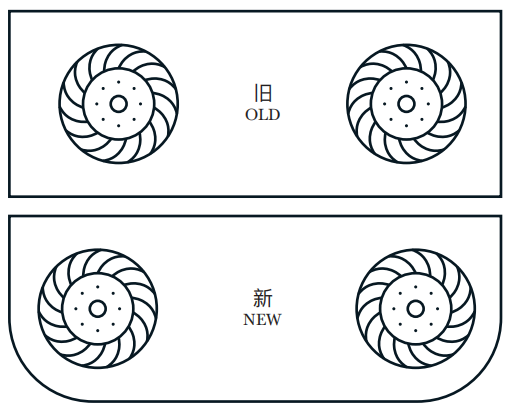

Blower diversion feature to ensure no dead angle in the circulation.

Vertical circulation air filter can be easily pulled out for cleaning during machine stop.

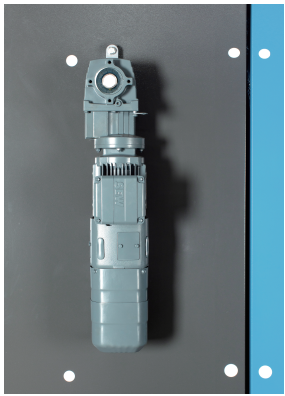

Heat leakage reduction due to Integrated width adjustment system, easy maintenance.

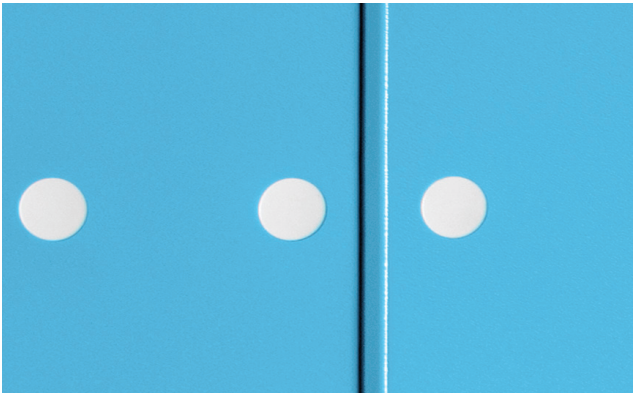

The hidden bolt can reduce the heat radiation and save more energy.

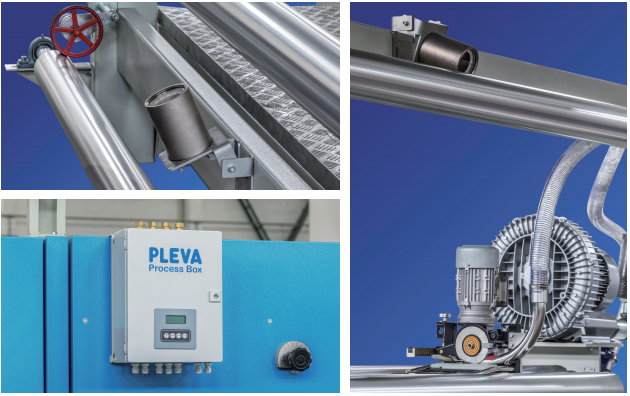

During the stenter process the online detection permanently controls selected operation data and corrects the adjustment if set-limits are exceeded.(Haida control system could be connected with the detection unit from PLEVA, E&L and MAHLO)

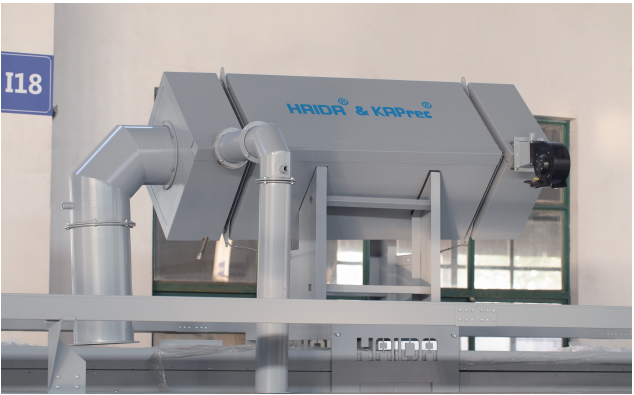

HAIDA-KAPrec air to air heat recovery(German patent number：102 010 000 509). Special version: KAPrec Thermoshield, to compensate the cold air impact in the inlet and outlet of the stenter and save up to 10%energy
