ASMA503 series stenter

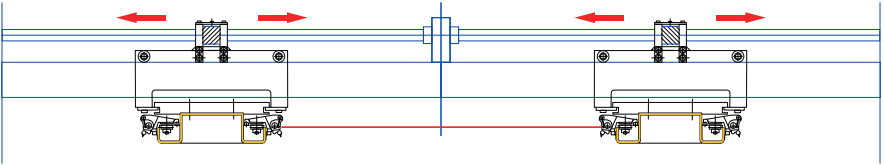

Width adjusting system

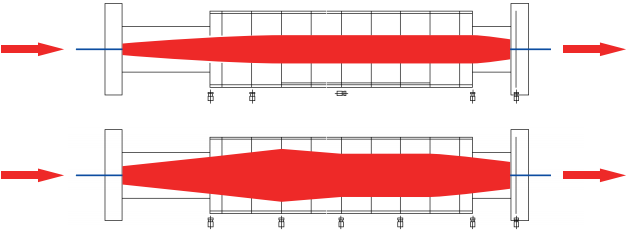

● General width adjustment of all spindles with longitudinal shaft, individual width adjustment in the inlet and outlet by motorized spindle.
● Indivdual width adjustment by motor of all width adjustment spindles.

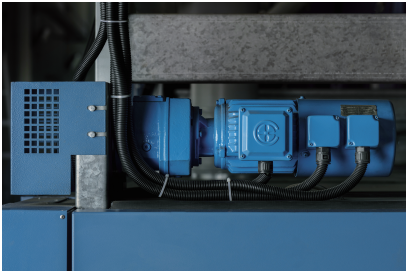

Width adjusting motor
Direct motor coder, position output.

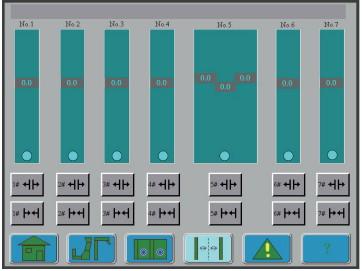

Touch screen control
Manual width adjustment on the touch screen or use of the set-up automation (option).

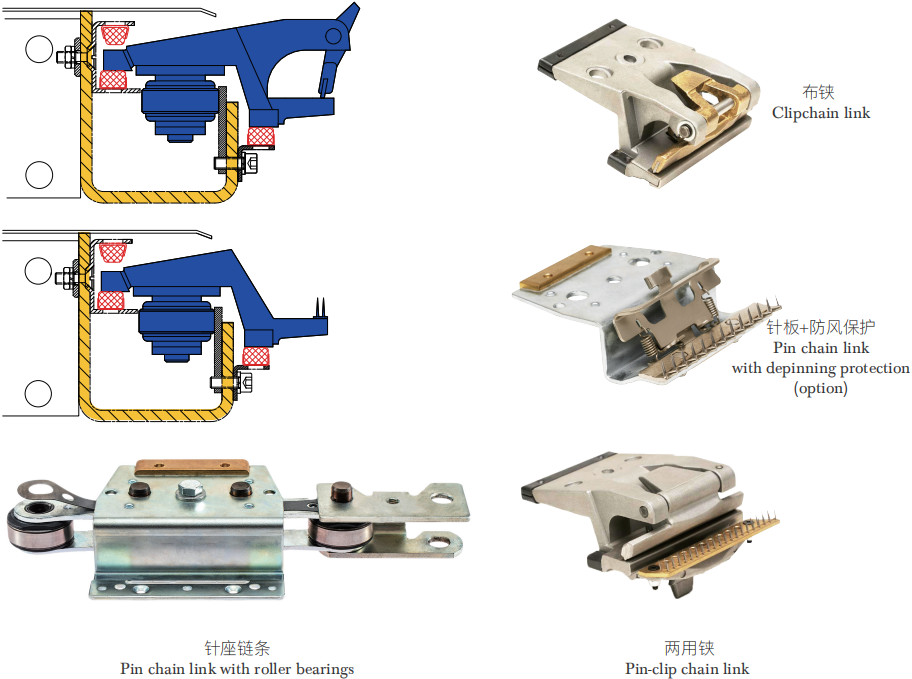

Hanging track: lubrication free, easy maintenance.
